How to Use a USB Microscope Step by Step

Mount the USB microscope on a stable stand, connect it to a data-capable port and open a trusted camera app. Select the microscope—not the built-in webcam—as the video source. Start at a longer working distance, move the lens to frame the object, then turn the focus ring slowly. Use the lowest LED level that gives a clear image and capture photos in software to avoid shaking the microscope.

Published 7 July 2026 Materially reviewed 19 July 2026 By Jiusion UK
No device-specific promise: no exact Jiusion model, connector bundle, USB identity, focus range, working distance, image output or tested platform matrix was supplied for this guide. Follow the instructions for the exact unit in front of you. The sequence below is generic and does not establish compatibility or performance for a particular device.

Before you connect the microscope

Start with the exact model instructions and the items actually supplied with that unit. Do not infer a cable, adapter, app or platform from a similar housing. A model label, packaging reference or manual version gives you a better support record if the first setup fails.

Check the hardware

  • Compare the device, stand, cable and any adapter with the exact instructions.
  • Inspect the cable, plug and housing before energising the device.
  • Remove a lens cap or protective cover only when the instructions identify it.
  • Do not force a connector or use damaged electrical equipment.

Prepare the workspace

  • Use a level, vibration-resistant table with room for the stand and cable.
  • Choose a flat, non-hazardous practice object with a visible edge or texture.
  • Keep liquids, loose fibres and cable strain away from the connection.
  • Create a writable folder for the first test capture.

HSE guidance for electrically powered work equipment says users should look for visible damage and remove defective equipment from use.[3] That is a condition check, not proof that an undamaged microscope is compatible with a particular computer or phone.

A UKRI teaching guide demonstrates the broad practical order of stabilising a USB microscope, choosing a video device, changing the lens-to-object distance, making small focus adjustments and controlling reflections.[1] Its named software, clamp and approximate positions belong to that teaching kit and are not transferred here as Jiusion instructions.

USB microscope setup: the complete first-use sequence

Change one thing at a time. First prove a stable live view, then improve framing, focus and lighting, and only then save a file. This order makes it easier to tell a connection fault from an optical setup problem.

  1. Identify the exact model and clear the optical path

    Record the model or label shown on the device and compare the physical contents with its current instructions. Check for transit damage, a lens cap or protective film, and any cable or adapter named for the data path. Do not add an unrelated adapter simply because its plug fits. If the lens needs cleaning, use only the method and material specified by the manufacturer.

  2. Secure the microscope in a stable stand

    Place the stand on a firm table and fit the microscope in the holder as its instructions show. Tighten only enough to prevent drift; overtightening can damage a holder or body. Arrange the cable with a relaxed loop so it does not pull the microscope sideways. Put the practice object beneath the lens, leaving room to move either the head or the object in small, controlled increments.

    Start with the stand at a position that gives a wider view rather than trying to fill the screen immediately. A wide starting view makes it easier to find the target and judge which direction to move.

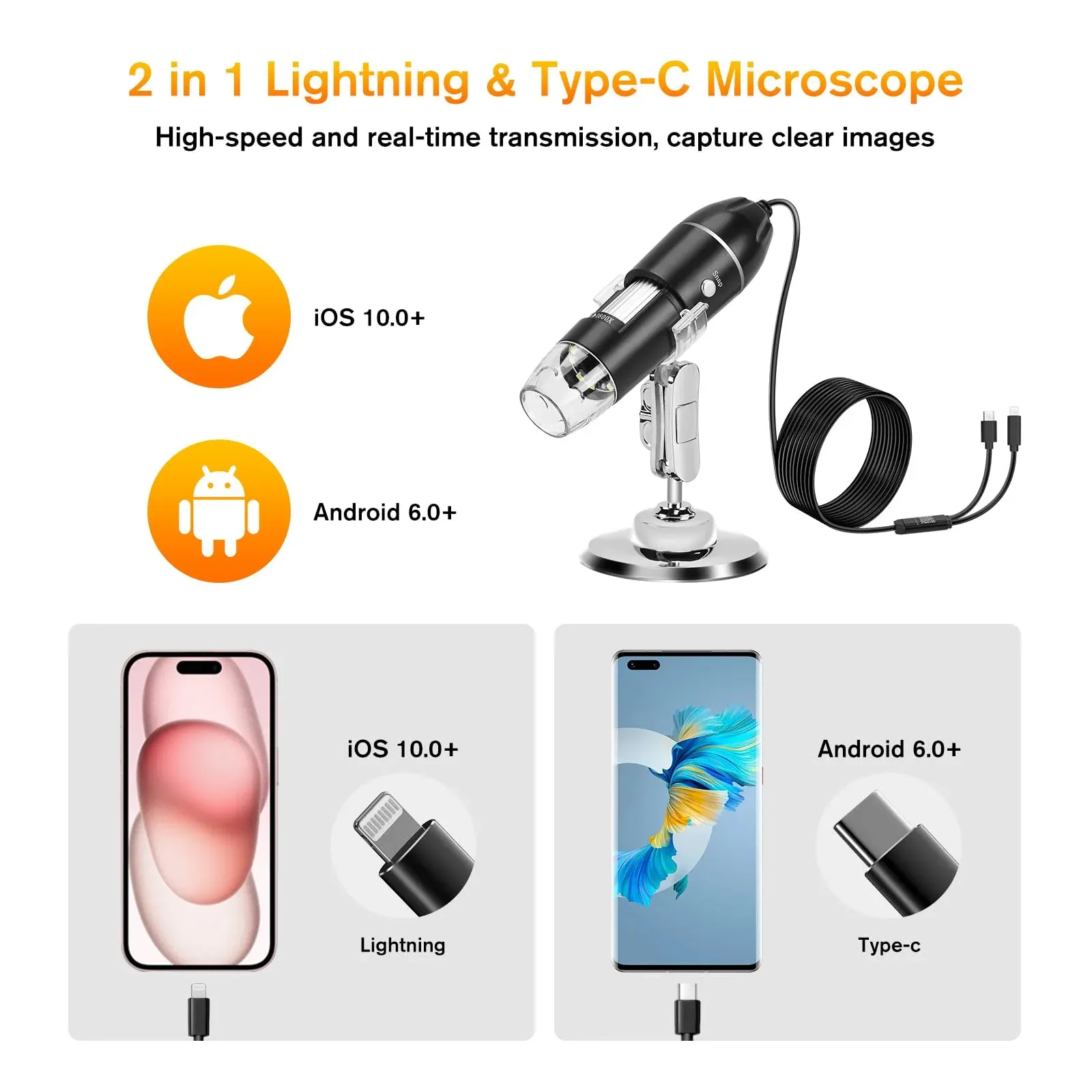

  3. Connect through the documented data path

    With the viewer closed, connect the cable and any required adapter through the path specified for the exact model. Use a direct, data-capable port for the baseline test unless the instructions require a powered hub or another arrangement. Do not force the connector, and stop if the cable or plug becomes damaged, unusually hot or unstable.

    USB-IF explains that USB cables and connectors do not all have the same capabilities.[2] A USB-C, USB-A or other connector shape therefore does not by itself prove data transfer, video support, host mode or compatibility. LEDs turning on show that some power is present; they do not prove that a video device has been detected.

  4. Open a trusted viewer and select the external source

    Open the camera or viewer named in the exact model instructions. If those instructions document the device as UVC, a trusted built-in camera app that can choose an external camera may be a useful first viewer. Otherwise, use only the official model-specific software path or a verified publisher.

    Open the app's Camera, Video, Device or source menu and choose the external microscope. A picture of your face or room means the built-in webcam is selected; changing the microscope's focus cannot fix that. If no external source is listed, complete the short physical checks below, then move to the software owner rather than installing unrelated drivers.

  5. Set working distance and frame the object

    Working distance is the gap between the front of the lens assembly and the object. Begin with more space and a wider field. Move the microscope or object gradually until the area of interest sits near the centre and occupies the required portion of the preview. Keep the stand base still and prevent the cable from changing the position.

    Distance affects framing and often changes focus. If you move closer or farther, expect to focus again. Do not copy an exact distance from another model, and do not assume the stand can frame a whole object until you have checked it physically.

  6. Focus slowly after the distance is set

    Use a high-contrast edge, printed mark or textured area as the focus target. If the exact instructions identify a focus ring or control, turn it slowly in small increments while watching that target. Pause after each movement so vibration and any display delay can settle. If sharpness improves and then worsens, return gently towards the clearest point.

    Lock or steady the stand once the target is sharp. When you change distance to alter the framed area, repeat the focus step. Avoid pressing down on the body or using a stiff control abruptly; movement at close range can shift the subject out of frame.

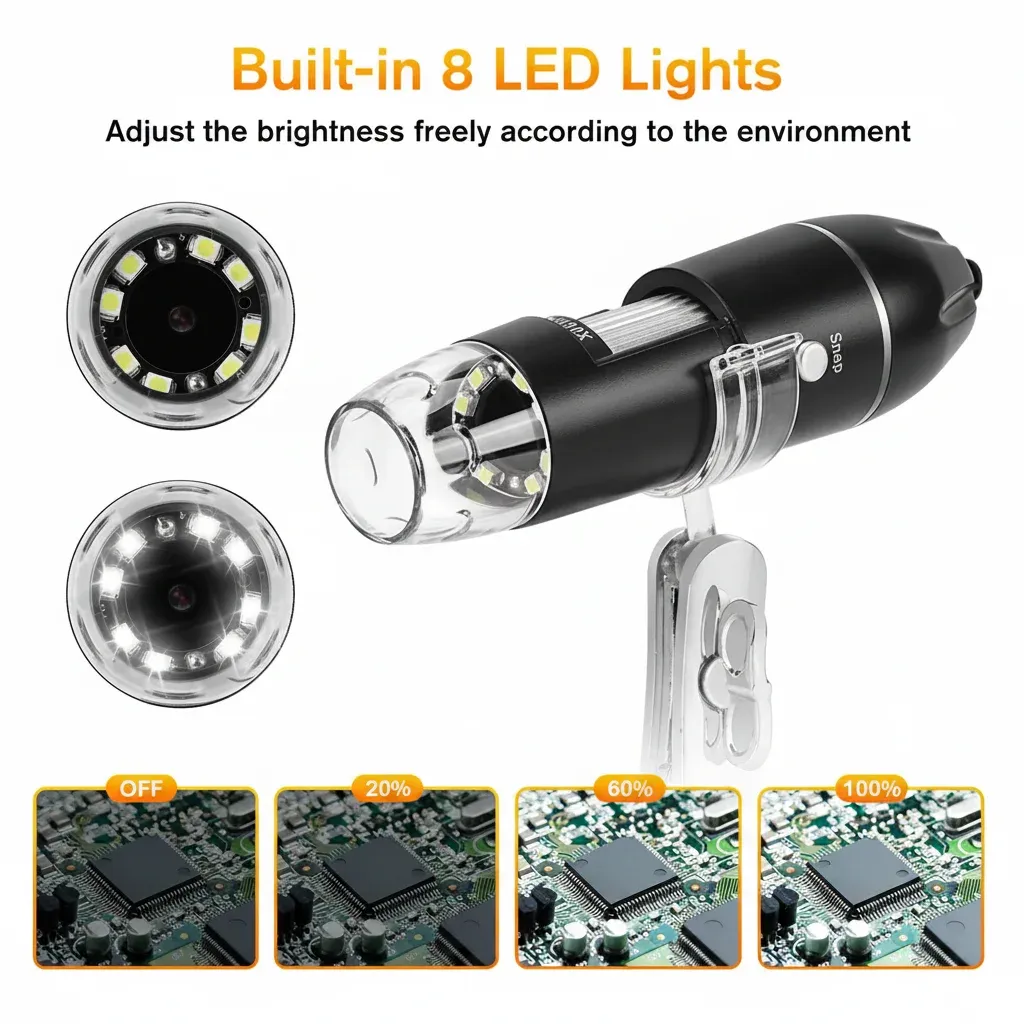

  7. Use the lowest useful light level

    Begin with the built-in LEDs at a low setting and increase them only until the subject is readable without a dark, noisy-looking preview. Bright, direct light can turn reflective metal, plastic or glass into a white patch that hides surface detail. Reduce intensity first; then change the angle between the light, object and lens if the setup permits.

    A gentle diffuse or side light can reveal texture that a ring reflection hides, but it must be safe for the object and must not obstruct ventilation or strain the stand. After moving the light or object, check framing and focus again.

  8. Capture without touching the microscope

    Once framing, focus and lighting are stable, wait for movement to stop and use the viewer's on-screen photo control or timer. Touching a button on the microscope can move a light stand, so use a physical button only when the exact model documents it and the stand remains stable. For video, record a short test and check where the file was saved before continuing.

    Open the saved file at ordinary viewing size and check that the intended area is sharp. Preserve the original rather than overwriting it with a crop or annotation. If the capture is soft while the live view looked sharp, repeat with a timer, less cable tension and no contact with the stand.

  9. Close, disconnect and store the setup

    Save and close the viewer, then disconnect the device in the order specified by its instructions. Hold the connector rather than pulling the cable. Replace the lens cap if one is supplied for that purpose, coil the cable without a tight kink and store the microscope in a clean, dry place where the focus control and stand are not under load. Record any fault before putting the unit away.

Working distance, focus and displayed size

The reliable order is frame with distance, then focus. Moving the lens closer often makes a smaller area fill more of the display; moving it farther often shows more of the object. The exact relationship depends on the optical design and stand, so this guide gives no universal distance or magnification number.

If you cannot find the object

  1. Move to a longer distance and wider view.
  2. Centre a recognisable edge or mark.
  3. Bring the lens closer in small increments.
  4. Refocus after each distance change.

If you need a repeatable view

  1. Mark the stand position without obstructing movement.
  2. Keep the object orientation and lighting unchanged.
  3. Record the focus-control position descriptively.
  4. Save a labelled reference image before the sample series.
Displayed size is not a verified magnification figure. Screen size, app zoom and browser scaling can enlarge the same pixels without adding optical detail. Use the live image to frame and focus the task; use only a documented, calibrated method if you need a measurement or magnification claim.

How to light reflective or low-contrast objects

Lighting should reveal the feature, not merely make the screen brighter. Start with low intensity and a centred object. If a bright reflection moves when the light or object angle changes, treat it as glare rather than surface detail.

  • Washed-out centre: lower the LED level before changing focus.
  • Ring-shaped reflection: reduce direct illumination and, where safe, add soft side light or diffuse the external source.
  • Flat-looking texture: move a side light gradually so shallow features cast gentle contrast rather than hard shadows.
  • Uneven exposure: centre the subject, reduce tilt and check that the microscope body or stand is not blocking the light.
  • Changing colour: avoid mixing several different light sources when colour consistency matters, and keep an unedited reference file.

Do not attach improvised material to a hot light, cover vents or place an unknown diffuser against electrical parts. The safe lighting arrangement depends on the equipment and specimen. This guide addresses image visibility, not laboratory illumination, medical use or electrical diagnosis.

Capture a sharp image and keep a useful record

A sharp image depends on the setup remaining still at the moment of capture. Finish the physical adjustments first, remove your hands from the stand and let vibration settle. Use the on-screen control or a short timer where the trusted viewer provides one.

Use a descriptive file name

A simple pattern such as YYYY-MM-DD_object_area_view-01 is easier to understand later than a camera sequence number alone. Keep the original file, and create a separate copy for crops, arrows or notes. For a sequence, keep the same stand, object and lighting positions unless the change itself is what you are documenting.

Record context, not an unsupported specification

  • the exact microscope model or label you observed;
  • the device and app used for the capture;
  • a description of the stand position and lighting direction;
  • whether app zoom, cropping or annotation was applied;
  • a reference image showing where the close-up area sits on the object.

Do not infer native resolution, optical magnification or measurement accuracy from the dimensions of a saved file; the digital microscope definition guide explains what those terms can and cannot promise. A calibrated measurement workflow belongs to the exact optical setup and software instructions, not to this generic physical-use guide.

Quick physical triage before software troubleshooting

Use these checks only to separate setup from software. If the physical path looks correct but the source is missing, permission is denied, the preview is black or the app crashes, continue with the digital microscope software troubleshooting guide.

No external source appears

Confirm the exact data-capable cable, adapter and port path; inspect for damage; remove an unverified hub for the baseline test if the manual allows. Then stop. Device enumeration, permissions and drivers belong to the software guide.

The laptop webcam appears

Open the app's source menu and choose the external camera. Do not change distance or focus to solve a source-selection fault. If no second camera is listed, move to software detection checks.

The preview is black

Check the lens cap, selected camera, low LED setting, working distance and focus target. If those physical checks are sound, use the software guide for permissions, app contention and video-path checks.

The live image will not stay sharp

Steady the base, remove cable tension, set distance before focus and wait after each adjustment. If the stand drifts or cannot hold the required position, that is a hardware-selection issue rather than an app setting.

The saved photo is blurred

Use an on-screen timer, avoid touching the body and let movement settle. Check the saved original rather than relying only on a scaled preview. A physical capture button may need model-specific support.

The subject is hidden by glare

Lower LED intensity, alter the light-to-object angle and refocus. Use safe, gentle side or diffuse light only when suitable for the sample and equipment; brightness alone does not reveal more detail.

Choose the right guide for the next decision

Detection, app or permission fault

Use the digital microscope software guide for operating-system detection, trusted app selection, UVC and driver boundaries, camera permissions, black screens and Android host requirements.

The stand or microscope cannot do the task

Use the digital microscope buying guide to compare stand stability, working space, field, lighting, capture needs and microscope architectures. Task-specific setups are covered in the coin microscope guide and the PCB inspection microscope guide. This operation page does not recommend a product or promise that a particular model fits the task.

Frequently asked questions

How do I connect a USB microscope to a laptop?

Connect it through the data-capable cable and adapter path specified for the exact model, then open the trusted camera app identified in its instructions. A connector that fits or an illuminated LED does not prove that video data is passing. If the microscope does not appear as a source, confirm the cable and port, then use the software guide for operating-system detection and permissions.

Which camera app should I open?

Open the app named in the exact model's current instructions. If the model is documented as UVC, a trusted built-in camera app that can select an external camera may be a sensible first check. Do not download a generic driver or app for a similar-looking microscope; use the software guide for platform-specific choices.

Why is the built-in webcam shown?

The app has selected the laptop's built-in camera rather than the external source. Open its Camera, Video or source menu and choose the microscope. If no external source is listed, stop changing focus and follow the software guide's detection, permission and app-contention checks.

How do I focus and change displayed size?

Set the lens-to-object distance first, then turn the documented focus control slowly until a clear edge or texture is sharp. To change displayed size, move the microscope or object in small increments, reframe and refocus. Screen zoom can make pixels larger without revealing new optical detail, so do not treat display size as verified magnification.

How do I reduce LED reflection?

Lower the built-in LED level first. If reflection still hides detail, change the angle between the light, object and lens, or use gentle diffuse or side lighting that is safe for the sample and equipment. Recheck focus after moving anything, and record the lighting position if you need repeatable captures.

How do I save a sharp photo?

Secure the stand, finish distance, focus and lighting adjustments, then wait for movement to stop and use the app's on-screen capture control or timer. Avoid touching the microscope during exposure. Save the original file to a known folder with a descriptive name; use a hardware button only when the exact model documents it and it does not disturb the setup.

Why is my USB microscope not detected?

First confirm the manufacturer-specified data path, inspect the cable and connector, remove any lens cap, and check whether the app lists a second camera source. A lit LED alone is not detection. If the source is absent or the preview remains black after physical checks, move to the software guide for permissions, UVC, driver and operating-system troubleshooting.
