What Is a Digital Microscope and How Does It Work?
A digital microscope uses optical lenses and a camera sensor to capture a magnified image and display it on a computer, monitor or built-in screen. Depending on the design, it may connect by USB or HDMI, save photos and video, and support software analysis. It is useful for inspection and documentation, but image quality, depth perception and measurement capability vary by system.
This beginner's guide explains the definition, imaging chain, common form factors, everyday uses and optical limits. It does not rank products, teach a complete setup procedure, troubleshoot software or provide a specialist coin, circuit-board or soldering workflow.
A digital microscope definition in plain language
Evident's introductory definition describes a digital microscope as a microscope that uses a digital camera instead of an eyepiece and shows the result on a monitor.[1] That is a useful description of common eyepiece-free systems, but it is not the only arrangement found in practice.
Leica explains that a conventional stereo or compound microscope can retain eyepieces while also carrying a digital camera.[2] In other words, digital and optical are not opposites. “Optical” describes the lenses and light path; “digital” describes camera capture, electronic processing and display.
How light becomes a screen image
The exact parts differ, but the basic imaging chain follows five stages:

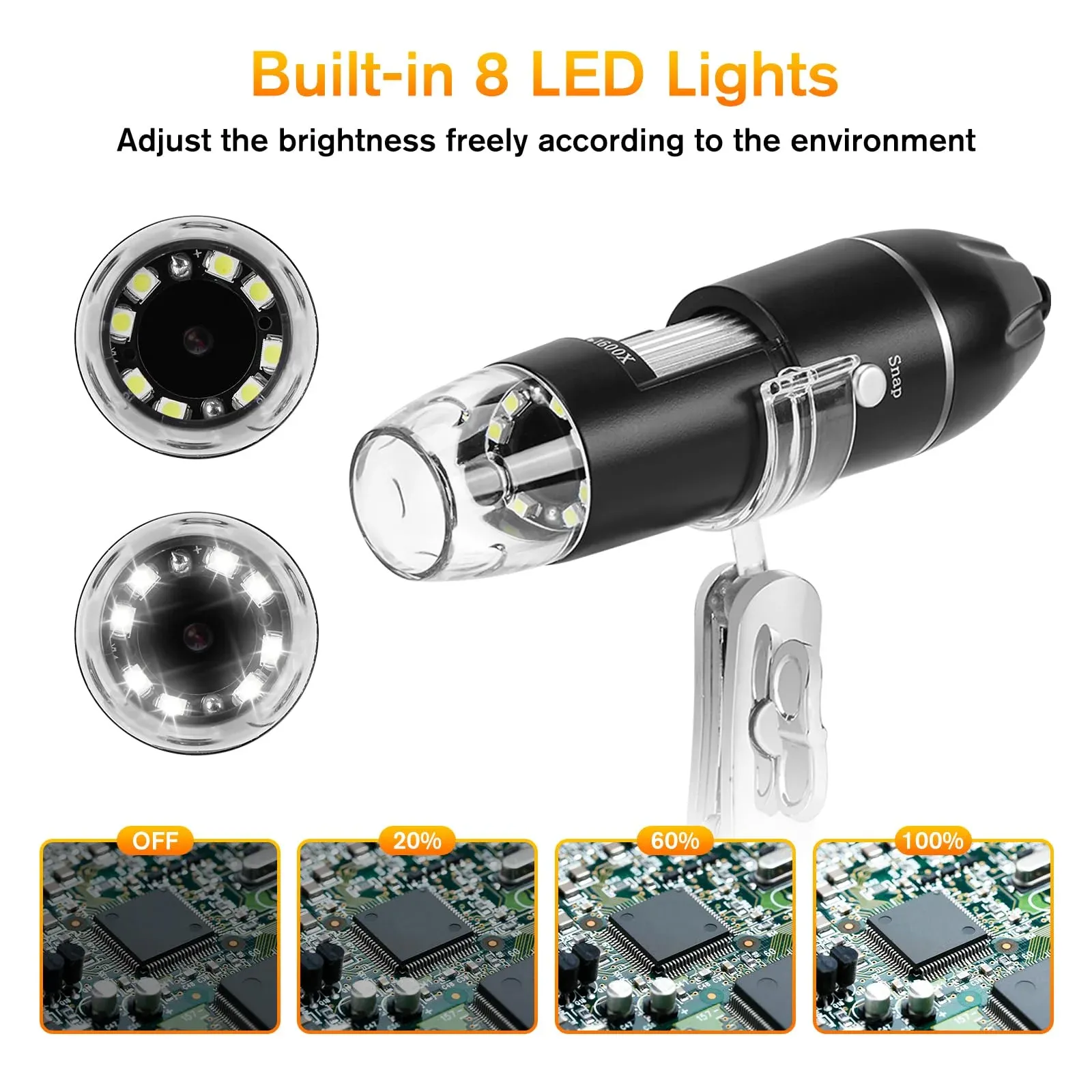

- Light reaches the specimen. A surface object may be lit from above or from the side. A thin prepared specimen may be lit from below. The light reflected, scattered or transmitted by the specimen carries visible information.
- Optical lenses form an enlarged image. The objective and any other optical components collect and focus light. Lens quality, aperture, focus, illumination and the specimen itself limit the detail available before the camera sees anything.
- A sensor samples the optical image. A camera sensor records the light across a grid of photosites. The sensor does not create specimen detail; it samples the image delivered by the optics.
- Camera electronics create image data. Electronics read the sensor, apply the camera's processing and produce frames or still-image data. A USB, HDMI or internal connection can then carry that data to the rest of the system.
- A display or software presents the result. The image appears on a screen. Depending on the system, it may also be saved, annotated, shared or analysed. Those functions describe the workflow, not the optical resolving power.
Evident summarises the core operation as optics plus a digital camera outputting captured images to a monitor, with software available on some systems for recording, analysis, measurement and reporting.[1] Each extra function still depends on the capabilities and calibration of the particular system.
Major digital microscope form factors
These labels describe different axes, so one microscope can fit more than one label. “USB” or “HDMI” describes a connection; “LCD” describes a display arrangement; “stereo” and “compound” describe optical architectures.

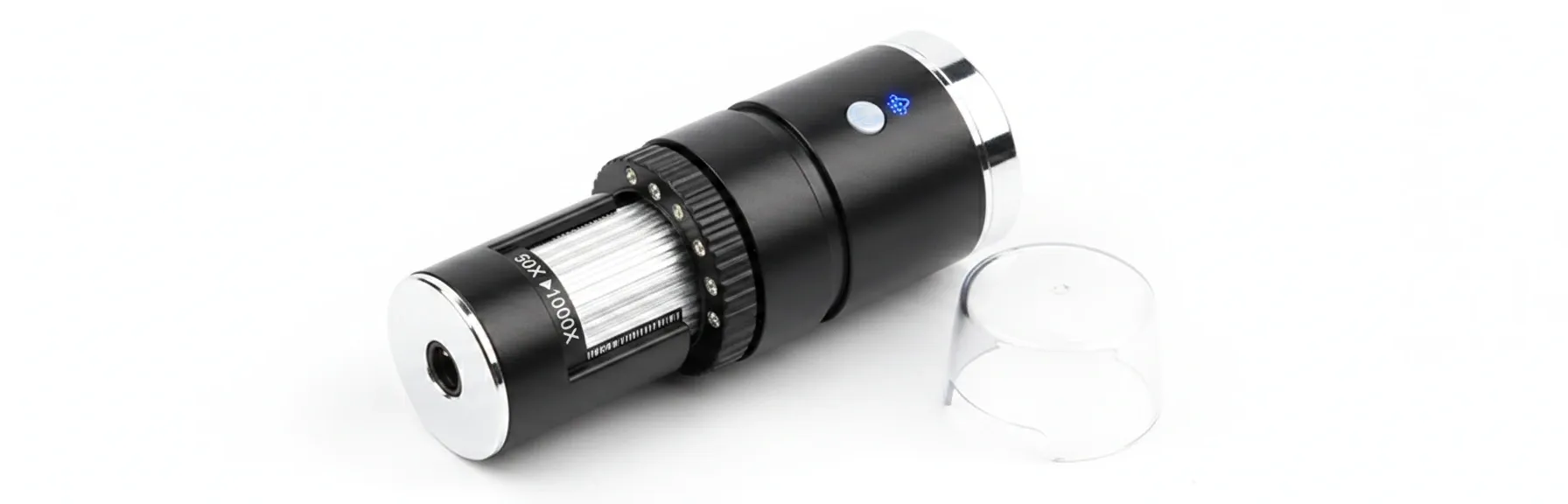

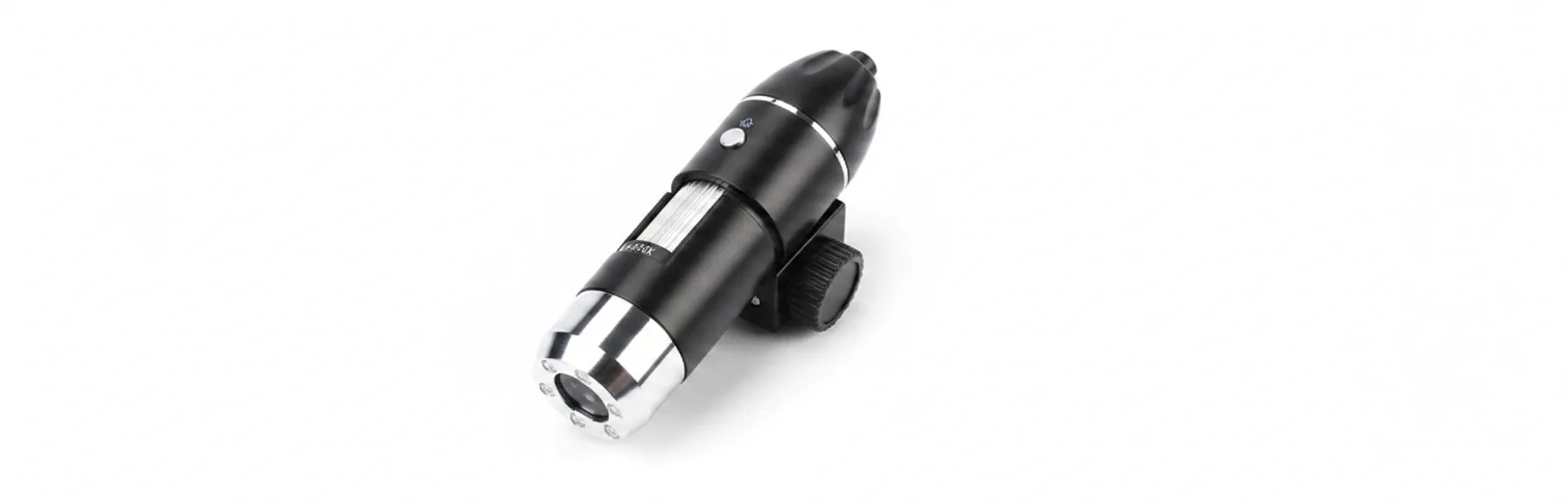

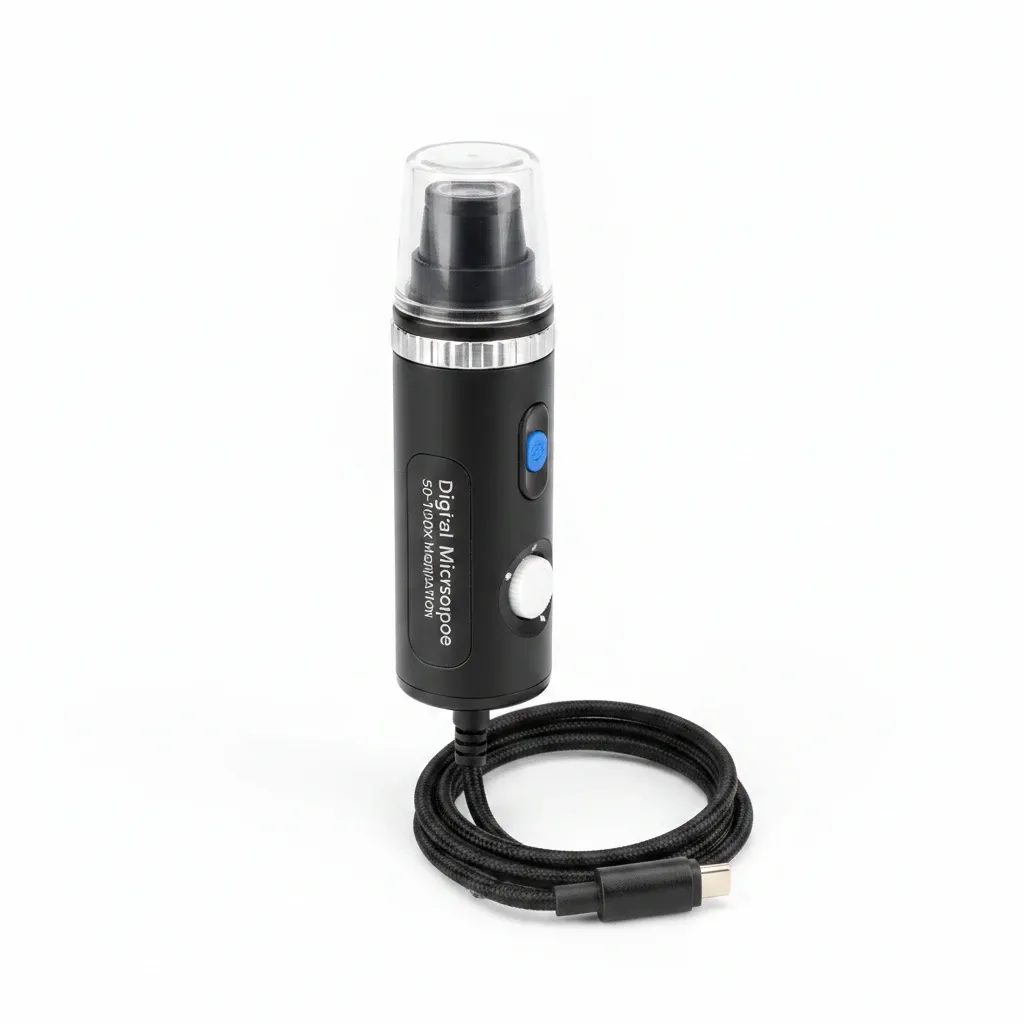

USB camera microscope
A compact camera-and-lens head sends image data to a host device over USB. The host commonly provides the screen and viewer software. Connector shape alone does not define optical quality or platform support.
Built-in LCD microscope
The camera, controls and display share one body or stand. Some systems can save files; others mainly provide a live view. Storage, output and measurement features must be checked for the exact system.
Monitor or HDMI system
A camera head sends a live image to a separate display. This can avoid dependence on a computer for viewing, although recording, control and latency still vary by camera and display path.
Camera-equipped stereo microscope
A stereo microscope uses separate optical paths for binocular depth through eyepieces and may add a camera for capture or sharing. An eyepiece-free 2D camera view does not provide the same direct stereo depth.[2]
Camera-equipped compound microscope
A compound optical system is commonly used with thin prepared specimens and transmitted light. A camera can replace or supplement eyepiece viewing, depending on the instrument.
Integrated inspection system
An industrial system may combine controlled lighting, encoded optics, a camera, a stand and analysis software. Its measurement and reporting functions are system-specific, not automatic properties of every digital microscope.
For a task-led choice between camera-and-screen systems, direct-view stereo optics and compound microscopes, use the digital vs optical microscope comparison. This page keeps to definitions rather than declaring a universal winner.
Optical magnification, sensor sampling and digital enlargement
Optical magnification happens before capture. Lenses form an enlarged image at the sensor. Useful optical detail is limited by the optical system, focus, illumination, contrast and the specimen.
Sensor sampling happens during capture. The sensor divides the optical image into pixels. Nikon's MicroscopyU explains that insufficient sampling fails to represent all available spatial detail, while excessive sampling does not add further spatial information.[3] A high pixel count therefore cannot recover detail that the optics never resolved.
Digital enlargement happens after capture. Software or a larger screen spreads the captured pixels over more display pixels. That may make an existing feature easier to view, but it does not reveal new specimen information. This is why a single headline “magnification” figure is incomplete unless the optical conditions, captured image and display method are defined.
What digital microscopes are useful for
A digital microscope is useful when a screen view, saved image or shared record matters. Suitability depends on the specimen, optics, lighting, stand, camera and software; the task name alone does not prove that a particular model will work.
Surface observation
Visible texture, print, fibres, small manufactured features and other surfaces can be viewed when the field, focus and lighting suit the object.
Image documentation
Still images and video can provide labelled records for comparison, teaching, reporting or discussion when the system preserves suitable files.
Shared viewing
A monitor allows more than one person to see the same live image, which can help demonstrations and collaborative inspection.
Prepared specimens
A digital compound system with the right transmitted-light optics can image prepared specimens. A surface-inspection camera should not be assumed to serve that role.
Software-assisted analysis
Some systems can annotate, compare or measure images. The software feature is only as meaningful as the captured image, setup and calibration.
Specialist inspection
Coins and circuit boards are common surface tasks, but each has its own field, lighting, handling and interpretation boundaries.
For task depth, continue to the retained guides for coin microscope observation or PCB inspection microscopes. Active tool work is a separate decision covered by the soldering microscope guide.
Important optical and practical limits
Captured detail
Screen size and digital zoom cannot restore detail lost through unsuitable optics, focus, lighting, motion, compression or sensor sampling.
Depth perception
A single camera view is two-dimensional. Focus cues and shadows can suggest shape, but they are not the direct binocular depth supplied by stereo eyepieces.
Display latency
Camera capture, processing and display can introduce delay. The amount is system-specific and matters most when hands or tools must respond to the live view.
Field and working space
A tight view may exclude the whole object, while close focus may leave little room around it. Magnification alone does not state field of view or working distance.
Specimen and illumination
Reflective surfaces, deep features and transparent specimens need different lighting. A design for surface reflection is not automatically suitable for transmitted-light specimens.
Measurement
A line tool on screen is not proof of accuracy. The optical setup and image scale must be calibrated and checked against a suitable known reference.
Can a digital microscope measure objects?
Some systems include measurement software, but the presence of a ruler icon does not make the result accurate. Leica's calibration guidance says reliable microscope measurement requires calibration against a known reference, such as a stage micrometer, at the relevant magnification, followed by a check of the calibration.[4]
Changing the lens, optical zoom, camera resolution, image resizing or another scale-setting part of the workflow can change the relationship between pixels and real distance. A suitable system should preserve or re-establish the correct calibration for the actual setup. Work requiring traceable metrology also needs an appropriate instrument, method, uncertainty control and calibration records; generic viewer software is not a substitute.
Six terms that prevent common mix-ups
- Optical resolution
- The smallest detail the optical system can separate under defined conditions.
- Pixel sampling
- How the camera sensor divides the optical image into recorded picture elements.
- Field of view
- The width and height of the specimen area visible in one frame.
- Working distance
- The space between the front optical assembly and the specimen when focused.
- Depth of field
- The range of specimen heights that appears acceptably sharp at once; it is not the same as binocular depth perception.
- Digital zoom
- Display enlargement or cropping of already captured pixels, without additional optical detail.
Where to go next
This definition page stops before purchase comparisons, physical setup and software troubleshooting. Use the owner that matches the next question:
- Digital microscope buying guide — compare broad system classes and selection evidence by task.
- Digital vs optical microscope comparison — choose between screen viewing, direct stereo depth and compound architectures.
- How to use a USB microscope — follow the physical connection, stand, distance, focus, lighting and capture sequence.
- Digital microscope software — handle apps, permissions, UVC boundaries, downloads and troubleshooting.
Frequently asked questions
What is a digital microscope?
A digital microscope is a microscope that uses optical lenses and a camera sensor to form and capture a magnified image, then shows that image on a computer, monitor or built-in screen. The word "digital" describes the camera-and-display path; it does not mean the system has no lenses.
How does a digital microscope work?
Light from or around the specimen travels through optical lenses, which form a magnified image on a sensor. Camera electronics convert the sensor output into image data, and a processor or software displays, records or analyses it. The exact lighting, connection and controls depend on the system.
Does a digital microscope still use optical lenses?
Yes. A digital microscope still uses optics to collect light and form the image before the camera records it. Digital zoom or a larger screen can make captured pixels look bigger, but cannot create optical detail that the lens and sensor did not capture.
How do USB, stereo and compound types differ?
USB describes a connection and common camera form factor; stereo describes two optical viewing paths that provide binocular depth; compound describes an optical arrangement commonly used with prepared, transmitted-light specimens. These labels can overlap: stereo and compound microscopes can carry digital cameras.
What is digital magnification?
Digital magnification is enlargement of an already captured image on a display. It can make a feature easier to see, but it does not add new specimen detail. Optical magnification occurs before capture, while the lenses form the image; useful detail also depends on sensor sampling, focus and illumination.
Can a digital microscope measure accurately?
Only a suitable system that has been calibrated for the same lens, camera settings, image size and working setup can support meaningful measurements. Refocusing, changing zoom, resizing an image or altering the setup may invalidate the scale. Uncalibrated measurement software should be treated as an estimate, not traceable metrology.
Sources
- Evident — What Is a Digital Microscope?: the camera-in-place-of-eyepiece definition, optics-and-camera imaging path, monitor display and examples of software functions.
- Leica Microsystems — What You Always Wanted to Know About Digital Microscopy: terminology overlap, camera-equipped stereo and compound systems, and the depth difference between binocular stereo viewing and a 2D camera image.
- Nikon MicroscopyU — Spatial Resolution in Digital Imaging: sensor sampling, loss of spatial detail when undersampled and the absence of additional spatial information from oversampling.
- Leica Microsystems — Microscope Calibration for Measurements: calibration against a known measurement reference at relevant magnifications and verification of the resulting calibration.
Sources checked 19 July 2026. They support generic microscopy definitions and limits; they do not verify the specifications, compatibility or performance of any Jiusion product.
